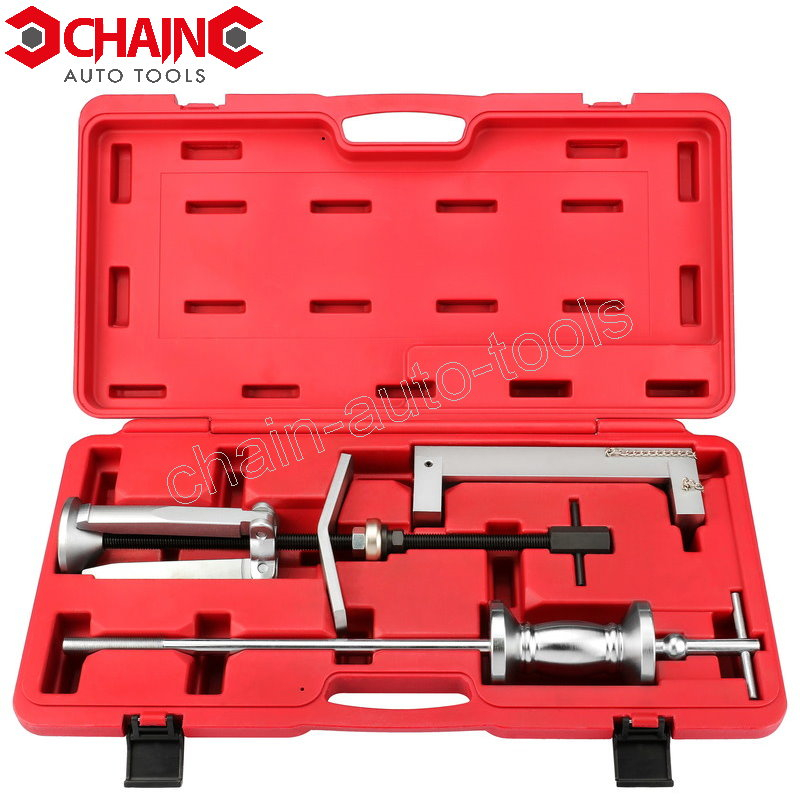

UNIVERSAL PULLER FOR WET-TYPE SLEEVES Item No.PUS279E

UNIVERSAL PULLER FOR WET-TYPE SLEEVESItem No.PUS279E

* Hammer weight: 5lb
* Sleeve range:
     3" to 6-1/2" in diameter

PACKAGE
BLOW CASE

* To remove cylinder sleeves faster
     than ordinary pullers because it
     requires very little setup time
* Cone adjustment positions the
     puller jaws quickly, locking bar
     is tightened. To aid in breaking
     "frozen"sleeves loose,
     adjustable bridge is positioned
     on the cylinder block and the
     bearing-mounted forcing nut is
     tightened
* Next, bridge is removed and slide
     hammer assembly is attached,
     with a few sharp hammer blows,
     sleeve is pulled. In most cases,
     job time will average less than
     two minutes per cylinder
* The puller features a 5 lb. Slide
     hammer to help bust loose even
     the most stubborn sleeves
