4PC CARBON FIBER TWIST SOCKET SET Item No.SSR487E-1

4PC CARBON FIBER TWIST SOCKET SET
4PC CARBON FIBER TWIST SOCKET SET

4PC CARBON FIBER TWIST SOCKET SETItem No.SSR487E-1

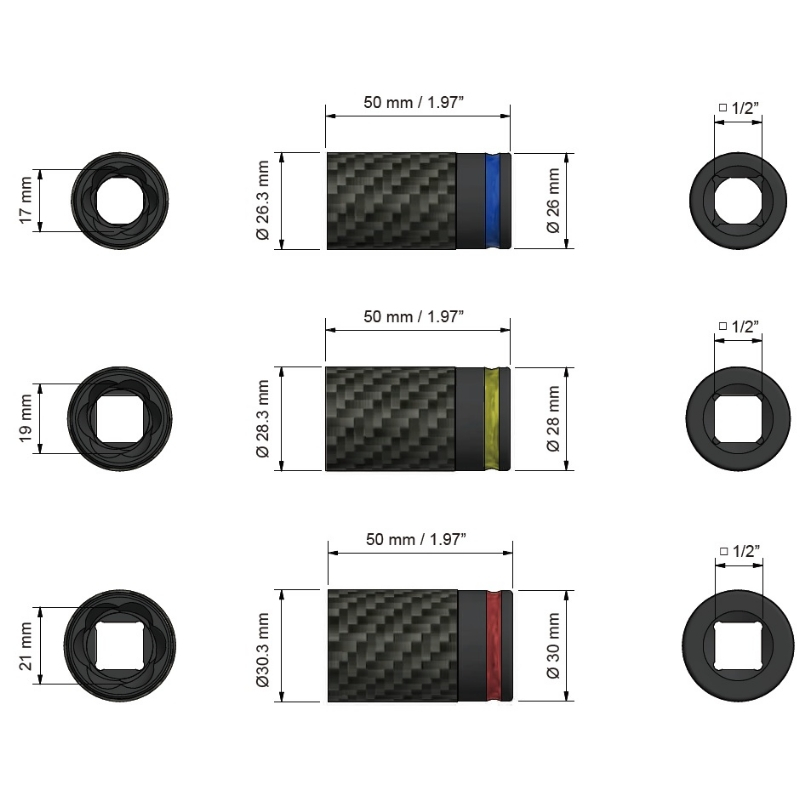

* Sq. dr.: 1/2"
* Twist socket: 17mm, 19mm, 21mm
* Socket length: 50mm
* Socket material: SNCM 439
* Hardness: HRC 50°-53°
* Surface finish: Manganese phosphate
* Sleeve material: Carbon fiber

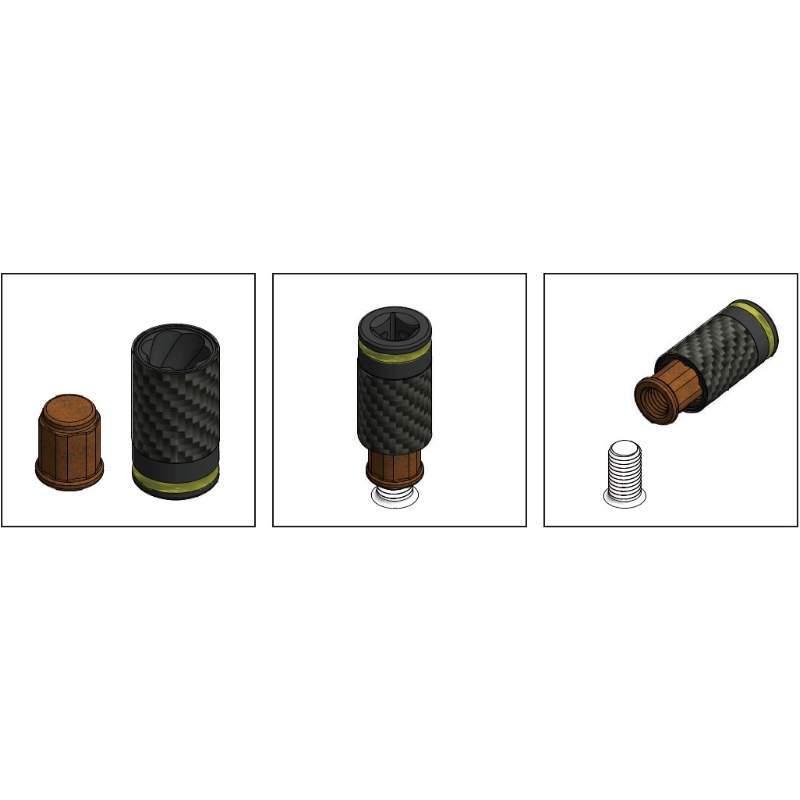

* For removing damaged, rusted and seized wheel
  fasteners

Q'TY/ CTN N.W./KG G.W./KG CUFT PACKAGE
20 12 13 0.7 BLOW CASE
* Includes 17, 19, and 21 mm twist sockets for common passenger cars, SUVs, and light trucks

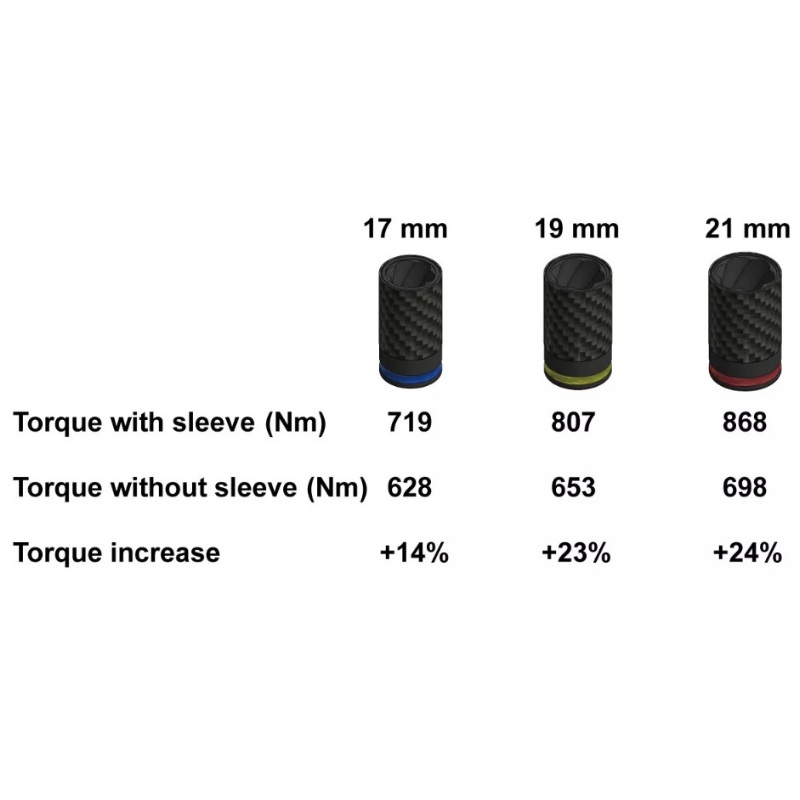

* Carbon fiber sleeves reinforce the socket body to help resist expansion under extreme torque
* Higher torque are helpful for removing extremely rusted, seized wheel fasteners
* Can be operated with an impact wrench

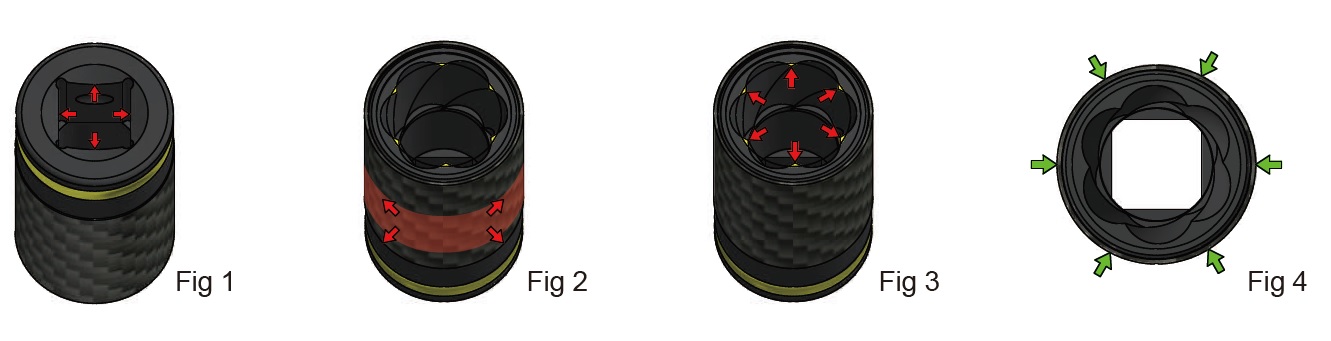

* When removing a seized lug nut, the socket experiences several stresses:
   1. Torsional stress - twisting from the wrench (Fig 1)
   2. Radial expansion - socket wall tries to expand outward (Fig 2)
   3. Stress concentration - flute edges / teeth are likely to crack (Fig 3)
   4. When carbon fiber sleeves are added, the socket wall stays rigid, teeth stay engaged, and the sleeves help resist expansion, thereby increasing torque resistance (Fig 4).
