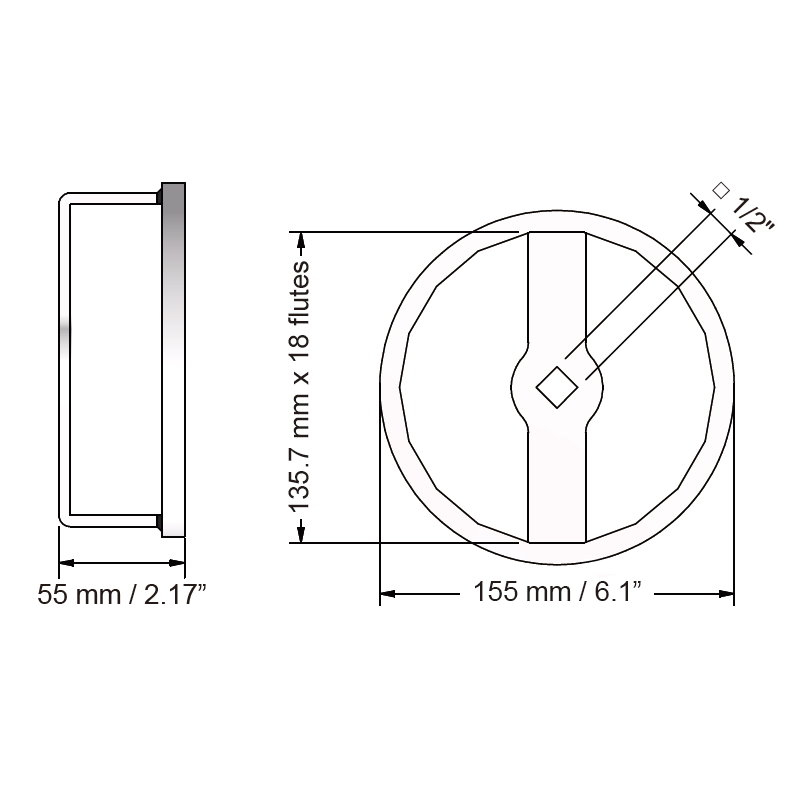

* O.D.: 155mm (6.1")
* I.D.: 135.7mm × 18 Flutes
* Height: 55mm
* SQ. DR.: 1/2"
* Torque: 25±5 Nm
* Material: Iron
* Surface finish: Electrodeposition
| Q'TY/ CTN | N.W./KG | G.W./KG | CUFT | PACKAGE |
|---|---|---|---|---|
| 20 | 12 | 13 | 0.94 | CORRUGATED BOX |

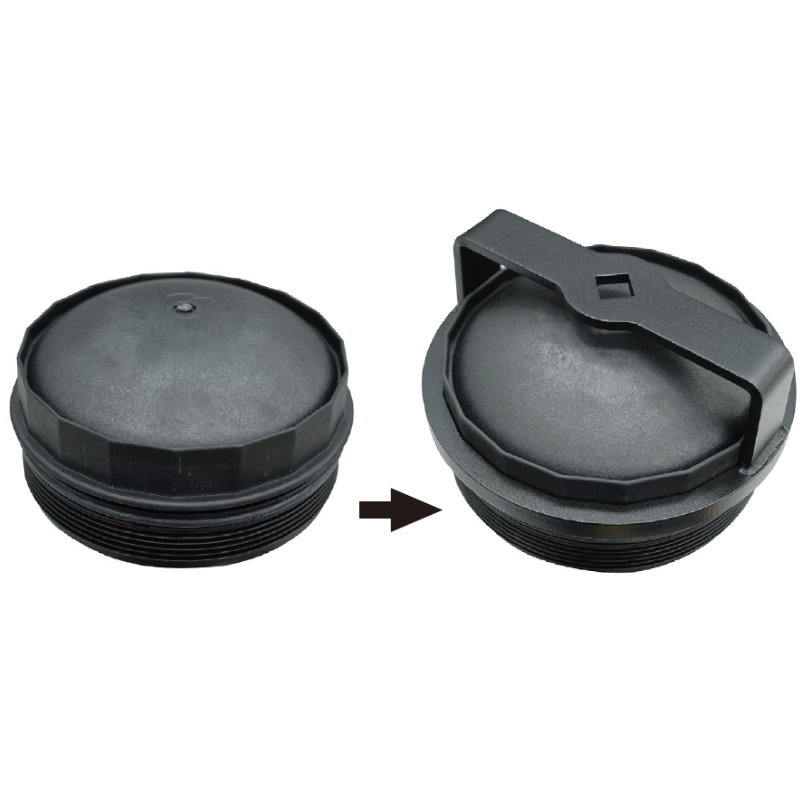

* Removing an old filter cartridge
Use a 1/2" drive tool or ratchet wrench to connect to the 1/2" drive on the oil filter wrench, and turn counter-clockwise
for removal
* Installing a new filter cartridge
Use a 1/2" drive ratchet wrench and connect to oil filter wrench for installation. Apply some oil on oil filter cover rim
before installation
