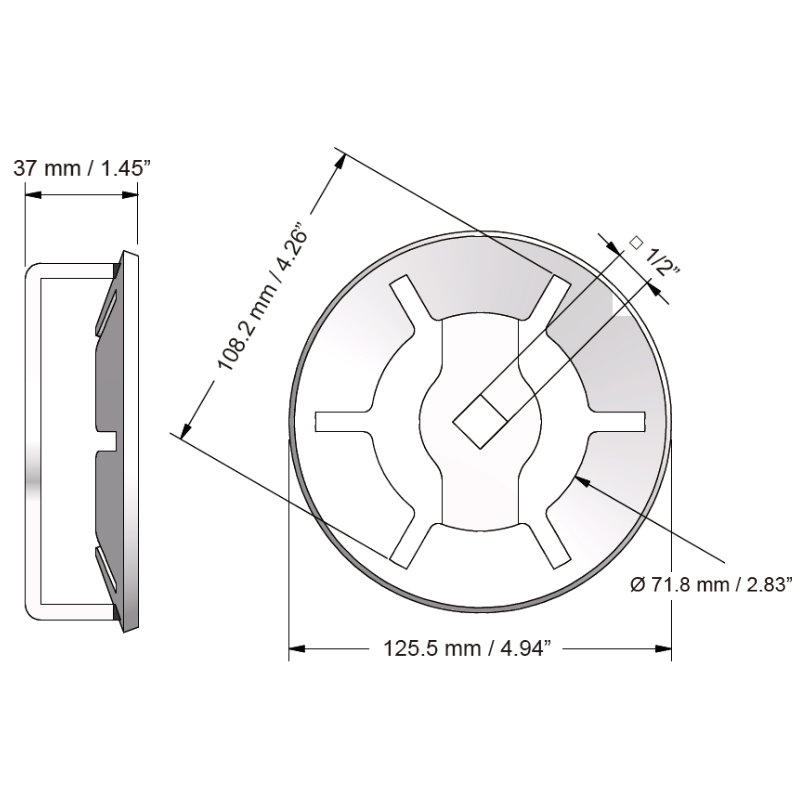

* O.D.: 125.5mm (4.94")
* I.D.: 108.2mm × 6 PT
* Height: 37mm (1.45")
* SQ. DR.: 1/2"
* Torque: 25±5 Nm
* Material: Iron
* Surface finish: Electrodeposition
* Applicitions: Please refer to the
PDF file below
Q'TY/ CTN | N.W./KG | G.W./KG | CUFT | PACKAGE |
---|---|---|---|---|
20 | 9.8 | 10.8 | 0.7 | CORRUGATED BOX |

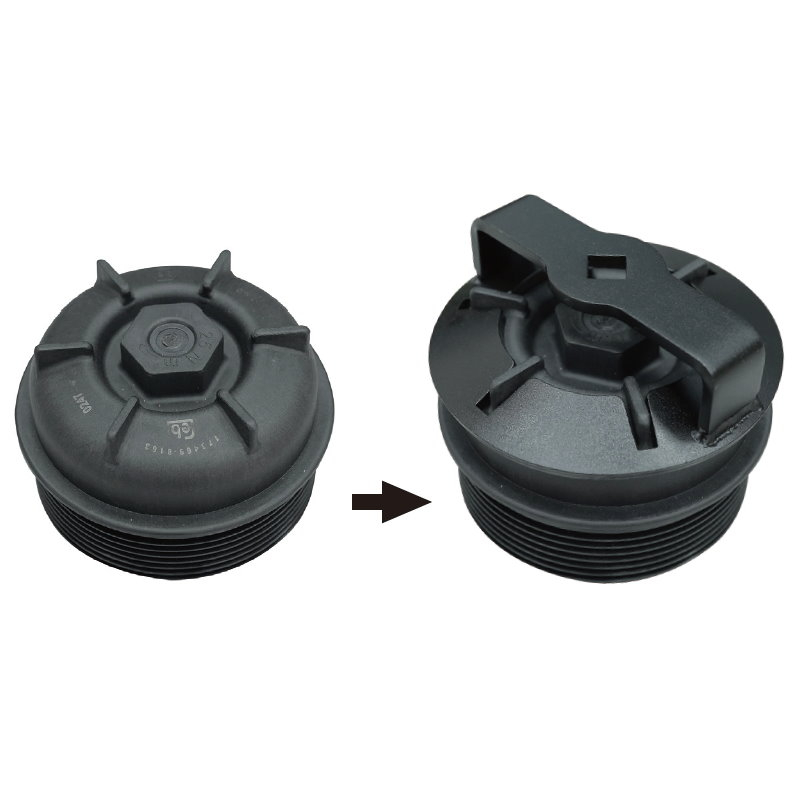

* Removing an old filter cartridge
Use a 1/2" drive tool or ratchet wrench to connect to the 1/2" drive on the oil filter wrench, and turn counter-clockwise
for removal
* Installing a new filter cartridge
Use a 1/2" drive ratchet wrench and connect to oil filter wrench for installation. Apply some oil on oil filter cover rim
before installation
