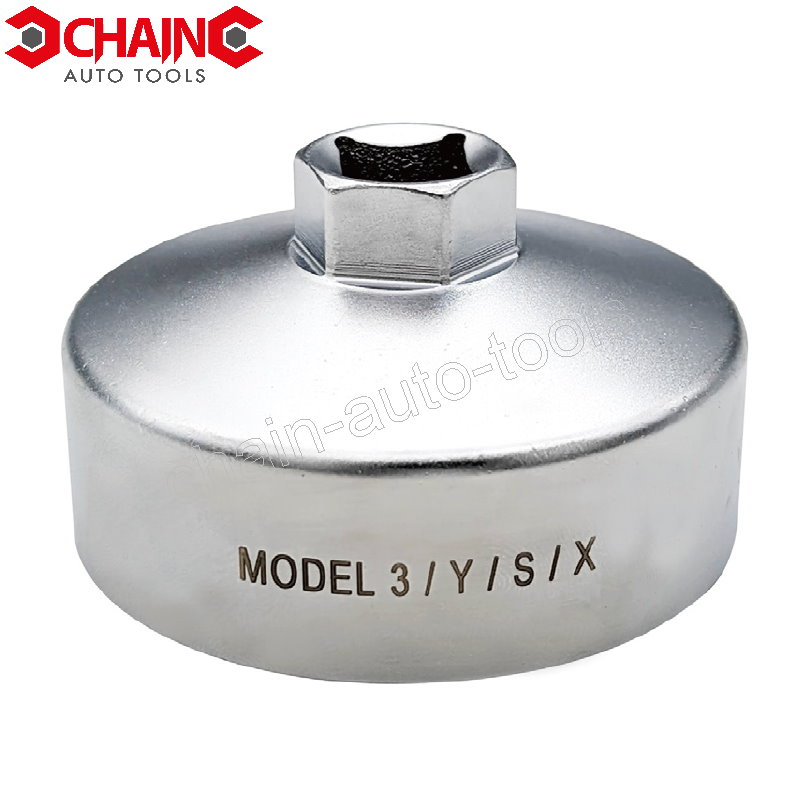

* Dimension: 63.8mm X 14 FLUTES
* Square drive: 1/2"DR
* Material: S45C
* MAX. Torque: 580Nm (427 lb-ft)
* Surface finish: Chrome plated
* Application: MODEL 3, MODEL Y, MODEL S, MODEL X
Q'TY/ CTN | N.W./KG | G.W./KG | CUFT | PACKAGE |
---|---|---|---|---|
40 | 14.2 | 15.2 | 0.3 | PLAIN BOX |
* Locate the oil filter housing and prepare an oil drainer.

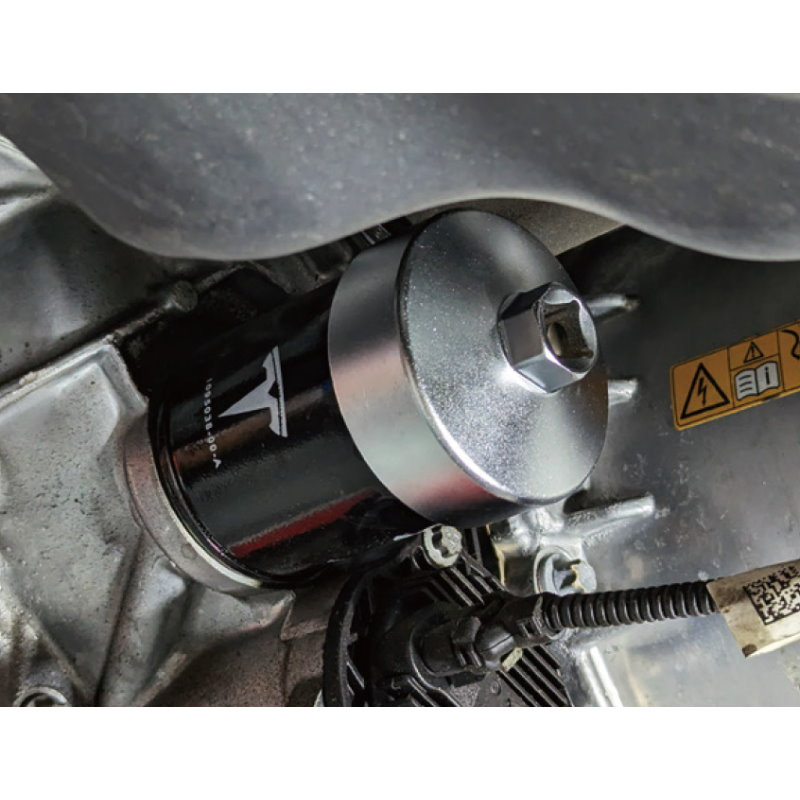

Insert the oil filter wrench onto the oil filter housing.
* Connect a 1/2” drive extension tool or a 21mm socket and turn counter-clockwise to remove the oil filter housing
* After the oil is drained, clean the oil filter wrench and store the tool at the place with no direct sunlight
