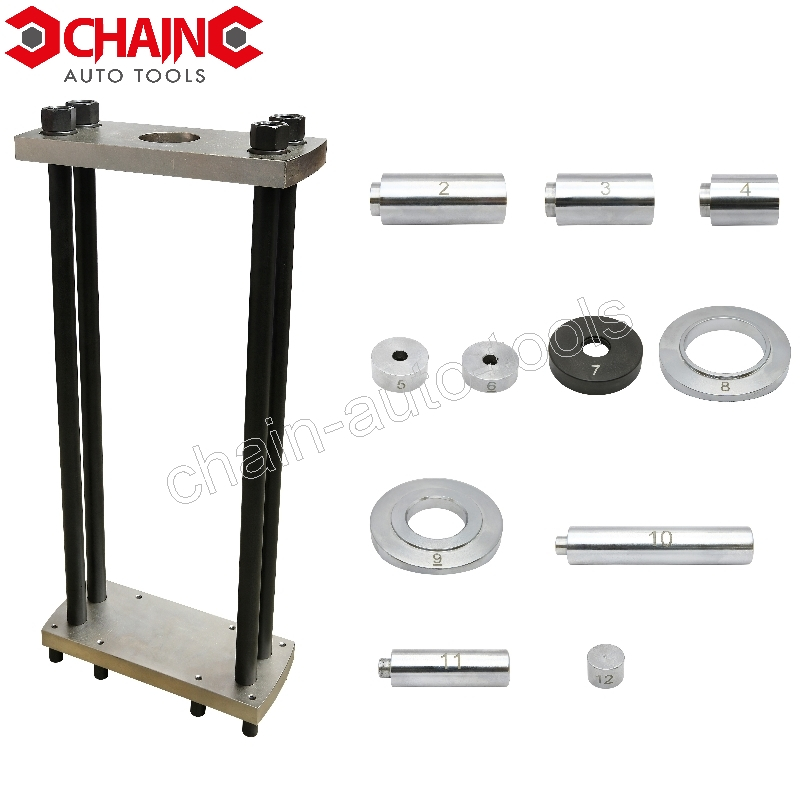

* Use a commercially available jack to cooperate with this tool to disassemble the big tip of a big truck.
* Applicable:
Generally large vehicles, some models require spacers allowable load 20 TONS
* Operation precautions:
Please lay down the block of the jack before starting work. If the block is not flat, the parts will be damaged.
When the jack' s top pressure cannot be cut off at one time, it can be extended and retracted several times and then
reinstalled with the extension joint. Installation operation. there is also another type of jack with the pads on the
bottom and the bottom on the top.
When the outer diameter of the jack block is larger than the outer diameter of the king tip, there is a need for cutting.
If the upper part of the joint is not perpendicular to the plane, please adjust unnecessary nuts, washers, etc. part.
Be sure to work in a vertical position. please add Ø21 spacers to fuso cars.
When the center point deviates, the top plate may not be closed. If the top plate is deformed, please release the thousand
The pressure of the jack is then reset.
* Instructions:
1. Please prepare a manual jack for vehicle-mounted type ok/ about 15 TONS), and use the attached spacer. if the size of the
pad is not the same as the plate, please straighten the pad by hand.
2. Please put the hole in the tool on the steering knuckle, and align the center of the king's tip with the top plate hole. If the
joint is too large to pass through the frame, remove the top plate and insert it, and then reassemble the top plate.
3. Align the position of the king's shoot and set the jack on the bottom plate.
4. Use the extension joint to adjust the expansion and contraction of the jack while pressing out the king pin for disassembly.
