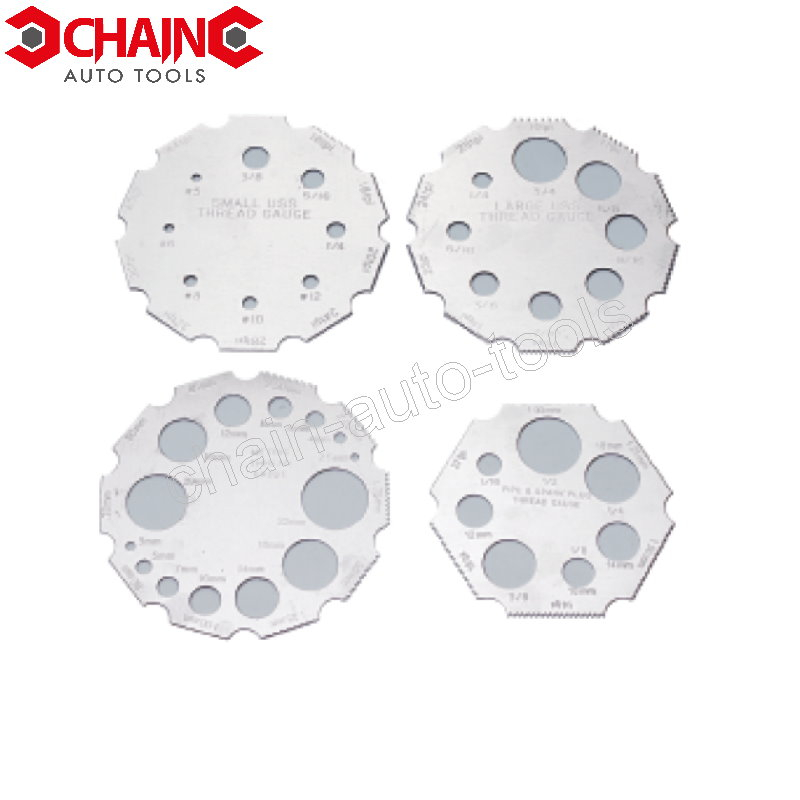

UNIVERSAL THREAD GAUGE SET Item No.MER121A-MA

MER121A-MA
MER121A-MA

UNIVERSAL THREAD GAUGE SET Item No.MER121A-MA

Q'TY/ CTN N.W./KG G.W./KG CUFT PACKAGE
144 9 10 0.6 POLYBAG + LABEL

* Large fractional gauge
   Measurement screw pitch size (TPI)
   : 10, 11, 12, 13, 14, 16, 18, 20, 24, 28
   Measurement bolt diameter size:
   1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4
* Small fractional gauge (TPI)
   Measurement screw pitch size
   : 16, 18, 20, 24, 28, 32, 36, 40, 44
   Measurement bolt diameter size:
   #5, #6, #8, #10, #12, 1/4, 5/16, 3/8
* PIPE & SPARK Plug gauge
   Measurement screw pitch size:
   1mm, 1.5mm, 14TPI, 18TPI, 20TPI, 27TPI
   Measurement diameter size: 10mm,
   12mm, 14mm, 18mm, 1/2, 1/4, 1/8, 3/8, 1/16
* Metric gauge
   Measurement screw pitch size (mm)
   : 0.45, 0.5, 0.7, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5
   Measurement bolt diameter size (mm)
   : 2.5, Three or Four, Five or Six, Seven or Eight, 10, 12,
   14, 16, 18, 20, 22
