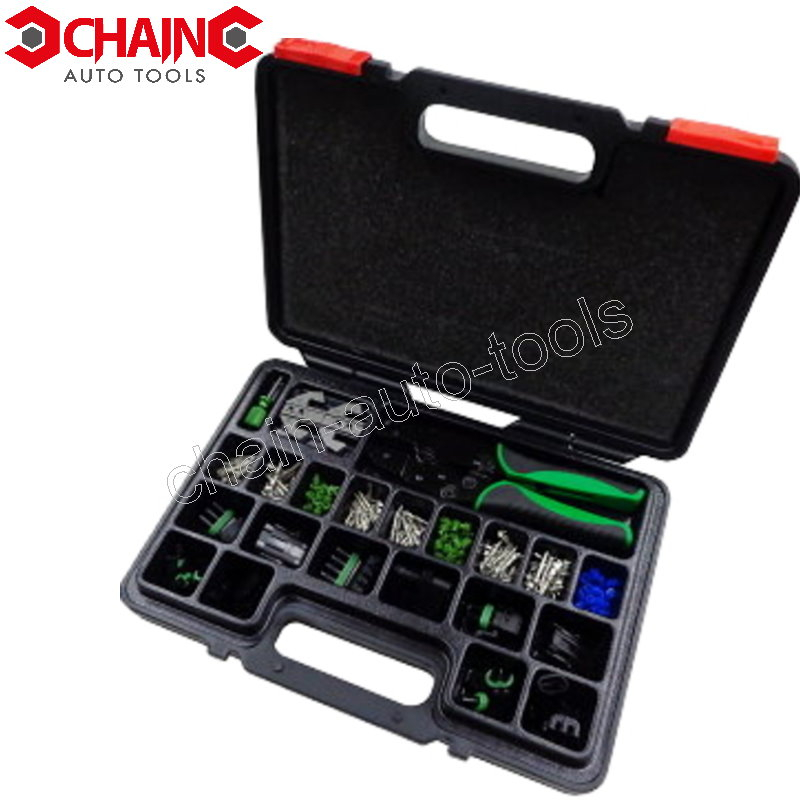

220PC WEATHER PACK CONNECTOR & TOOL KIT Item No.PLR078E

PLR078E
PLR078E

220PC WEATHER PACK CONNECTOR & TOOL KITItem No.PLR078E

Q'TY/ CTN N.W./KG G.W./KG CUFT PACKAGE
10 15.4 16.4 2.7 BLOW CASE

* 1PC Die for delphi weather pack
   Terminal: AWG 20-18/22 (Din: 0.5-0.8/0.35m㎡)
* 1PC Die for delphi weather pack
   Termianl: AWG 16-14/12 (Din: 1.0-2.0/3.0m㎡)

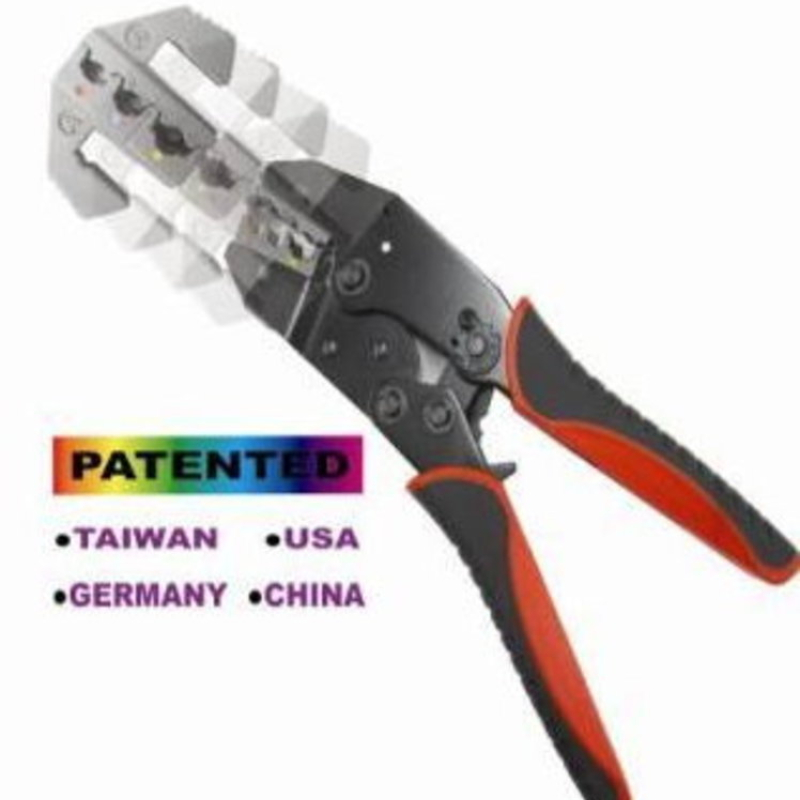

* 1PC Quick change ratchet crimper
   25PC Ø1.4 wire seal for delphi weather pack
   (For insulator O.D.: 1.4-1.9mm)
* 30PC Ø2.5 wire seal for delphi weather pack
   (For insulator O.D.: 2.0-3.4mm)
* 25PC Ø2.8 wire seal for delphi weather pack
   (For insulator O.D.: 2.9-3.8mm)
* 20PC Receptacles male terminal for delphi weather pack
   (0.50-0.85m㎡)
* 20PC Receptacles female terminal for delphi weather pack
   (0.50-0.85m㎡)
* 20PC Receptacles male terminal for delphi weather pack
   (1.25-2.00m㎡)
* 20PC Receptacles female terminal for delphi weather pack
   (1.25-2.00m㎡)
* 20PC Receptacles male terminal for delphi weather pack(3m㎡)
* 20PC Receptacles female terminal for delphi weather pack(3m㎡)
* 3PC 1 Pole receptacles type male housing for delphi weather pack
* 3PC 1 Pole receptacles type female housing for delphi weather pack
* 2PC 2 Pole receptacles type male housing for delphi weather pack
* 2PC 2 Pole receptacles type female housing for delphi weather pack
* 1PC 3 Pole receptacles type male housing for delphi weather pack
* 1PC 3 Pole receptacles type female housing for delphi weather pack
* 1PC 4 Pole pin type male housing for delphi weather pack
* 1PC 4 Pole pin type female housing for delphi weather pack
* 1PC 4 Pole receptacles type male housing for delphi weather pack
* 1PC 4 Pole receptacles type female housing
