* Die material: AISI-4140
* Procedure: precision and Wax-Lost Casting W/ Heat treat
* Surface : Zinc phosphate

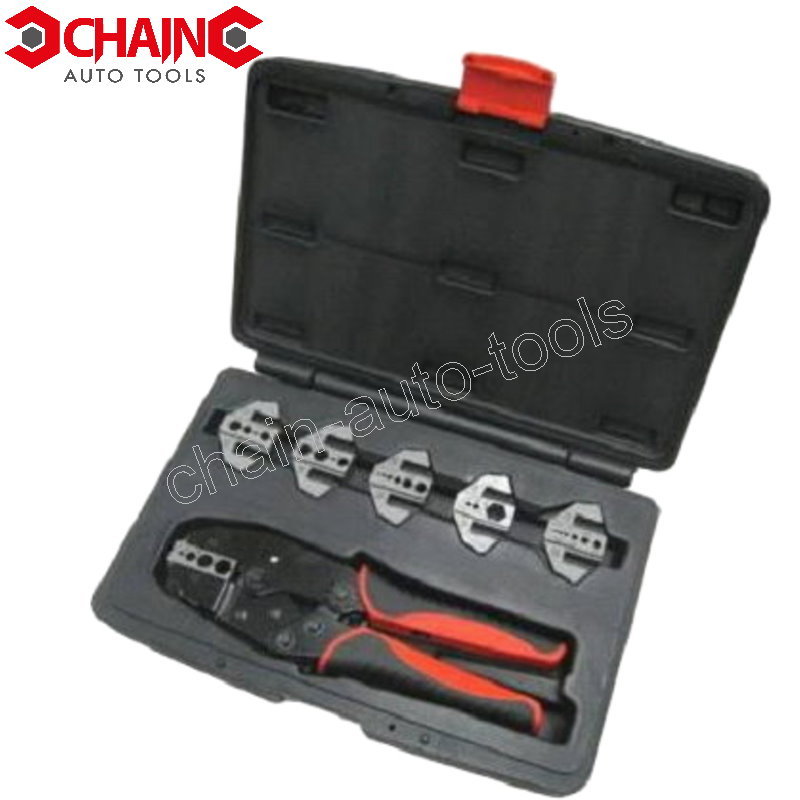

7" quick change ratchet crimper
Material: Carbon steel
* Handle: PP + TPR (PAHS Approved)
| Q'TY/ CTN | N.W./KG | G.W./KG | CUFT | PACKAGE |
|---|---|---|---|---|
| 10 | 11.6 | 12.6 | 1.3 | BLOW CASE |

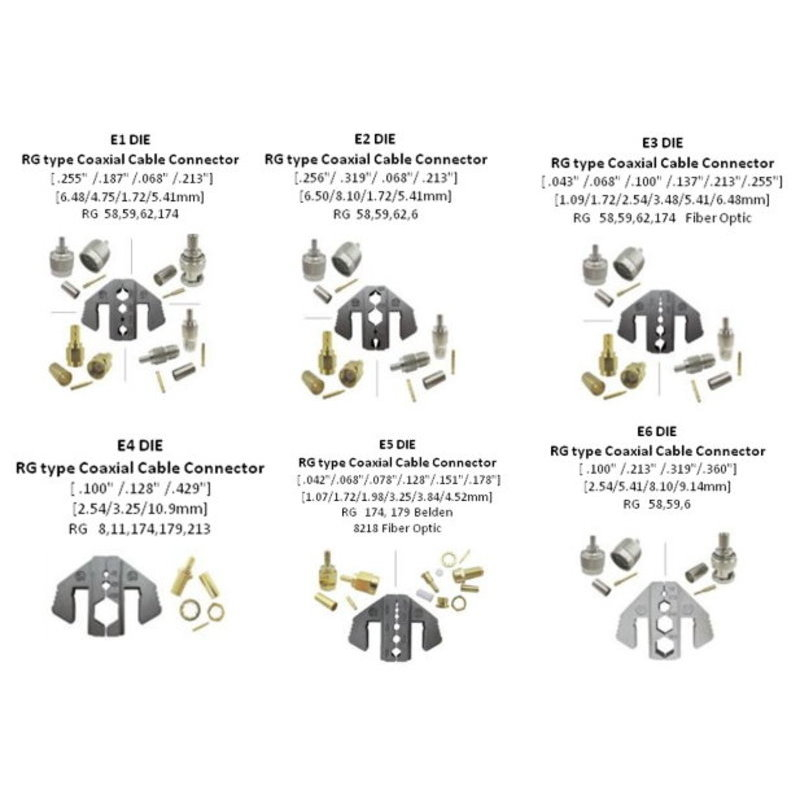

* E1 DIE:
0.255",0.187",0.068",0.213"
(6.48mm,4.75mm,1.72mm,5.41mm), RG Type 58,59,62,174
* E2 DIE:
0.256",0.319",0.068",0.213"
(6.50mm,8.10mm,1.72mm,5.41mm), RG Type 58,59,62,174
* E3 DIE:
0.043",0.068",0.100",0.137",
0.213",0.255"(1.09mm,1.72mm,2.54mm,3.48mm,5.41mm, 6.14mm),
RG Type 58,59,62,174 fiber optic
* E4 DIE:
0.10",0.128",0.429"(2.54mm,3.25mm,10.90mm),
RG Type 8, 11, 174,179,213
* E5 DIE:
0.042",0.068",0.078",0.151",
0.178"(1.07mm,1.72mm,1.98mm,3.25mm,3.84mm,4.52mm),
RG Type 174,179 Belden, 82128 fiber optic
* E6 DIE:
0.10",0.213",0.319",0.360"
(2.54mm,5.14mm,8.10mm,9.14mm), RG Type 58,59,6
