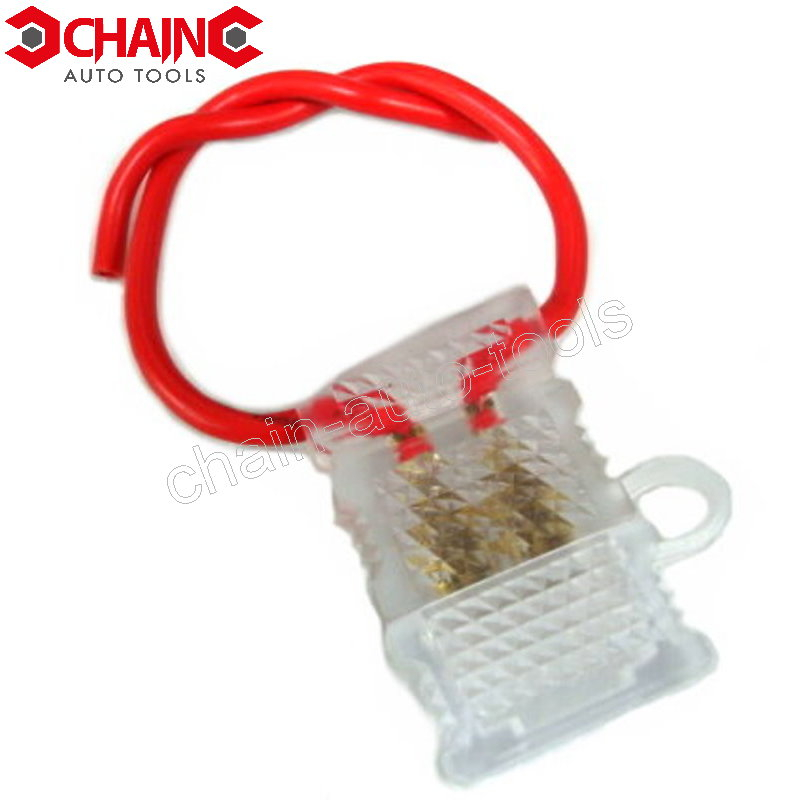

* Body length: 30.4 ± 0.2mm
* Wire length: 105.0 ± 2.0mm(each side)
* Max. Rated current: 30a
* Insulation resistance at 500v dc: 100 mohm min.
* Contact resistance: 5mohm at 1a dc
* Dielectric strength for 60 seconds: ac 1500v min.
* Bodt material: transparent pvc
* Supply standard wire-awg: red 1015 12#awg 105mm
* Water resistant type
