Q'TY/ CTN | N.W./KG | G.W./KG | CUFT | PACKAGE |
---|---|---|---|---|
2 | 19.5 | 20 | 1.2 | BLOW CASE |

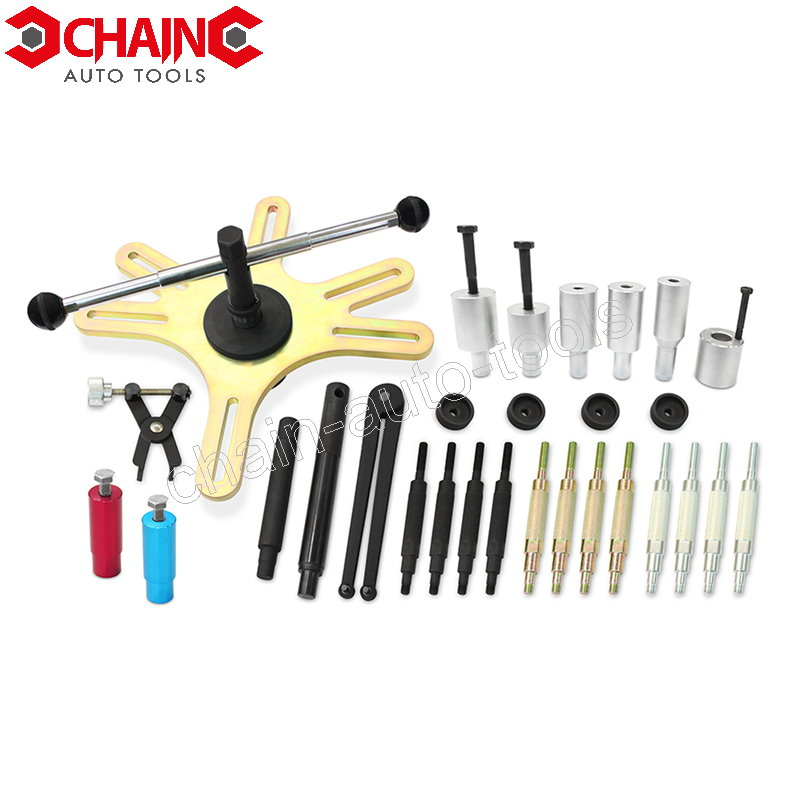

* Contents:
1PC CLamping tool for SAC clutches with 6(8) locking holes
1PC Face spanner
1PC Compression strut
6PC Clutch mandrel set(BMW):
15 x 23mm; 15 x 26.5mm
15 x 28mm; 15 x 32.5mm
15 x 34mm;
Centering sleeve(15mm/32.5mm)
1PC Clutch resetting tool
2PC Handle for clamping tool
4PC CLutch centering tools:
Blue: 19.75mm Diameter
Pink: 20.75mm Diameter
Black stepped: 19mm/15mm/14mm
Black stepped:22mm/20mm/15mm(VW)
4PC Knurled nuts for threaded bolts
3SETS of 4 threaded bolts:
Silver: M6/1.0 Screw thread
Black: M8/1.25 Screw thread
Gold: M7/1.0 Screw thread
* This kit allows the professional dismounting and mounting of all
self adjusting clutches(SAC) e.g. OnVW, AUDI, BMW, FORD,
MERCEDES-BENZ, OPEL, RENAULT, VOLVO, etc
* During assembling and disassembling operations the
Pre-Tightening of the pressure plate is required in order to
avoid clutch deformations
* The 6-Arms plate has been designed for use with 3 and 4 fixing
points, for clutches with6 or 8 locking holes
