* Body: Aluminum
* Mandrel: Carbon steel
* Sleeve: Carbon steel
Q'TY/ CTN | N.W./KG | G.W./KG | CUFT | PACKAGE |
---|---|---|---|---|
5 | 17 | 18 | 1 | BLOW CASE |
* Application:
For trucks with single or double disc clutches (Universal)

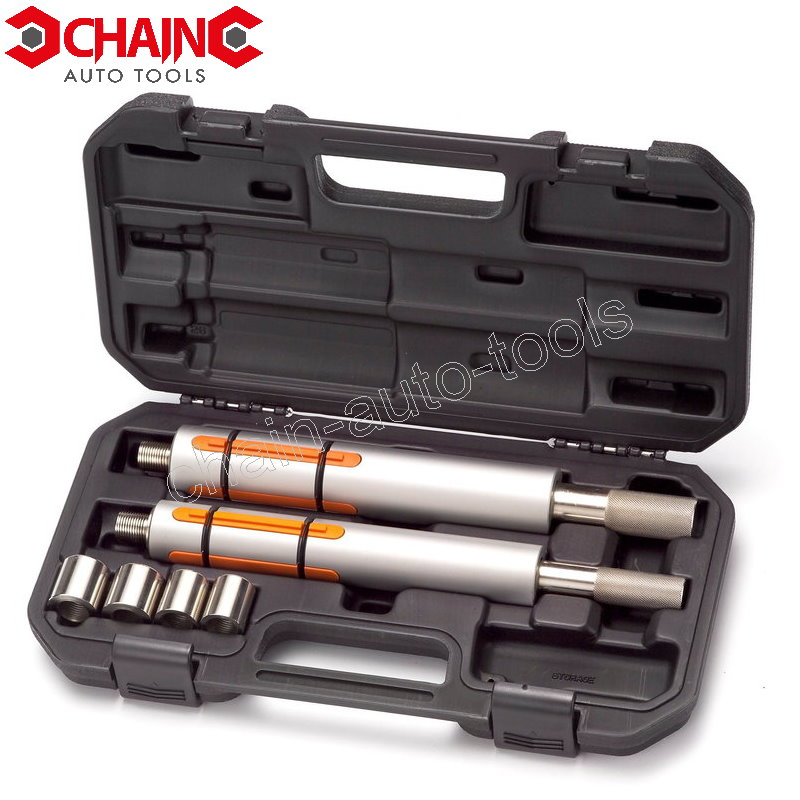

* This tool set allows the correct alignment of single or double
disc clutches of trucks and tractors to the engine
* Mandrel No.1 is applicable on interior clutch hub- Ø from 36-45mm inside
* Mandrel No.2 is applicable on interior clutch hub- Ø from 42-52mm inside
* The clutch aligner kit contains centering sleeves with Ø 20,25,27and 30mm
